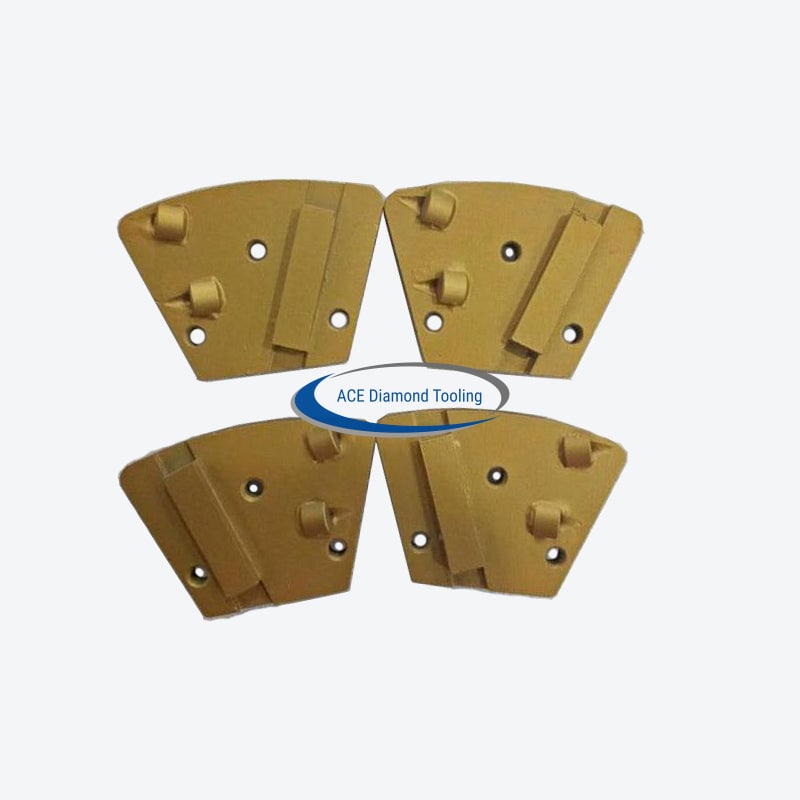

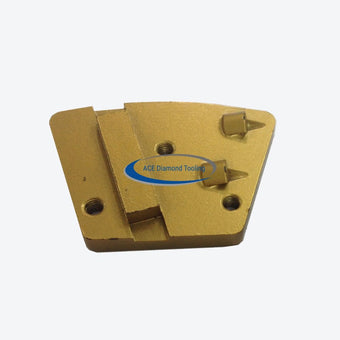

Trapezoid 1/4PCD with Bar PCD Diamond Tooling

Trapezoid 1/4PCD with Bar PCD Diamond Tooling

$19.35
$19.35
Shipping calculated at checkout.

The Trapezoid 1/4PCD with Bar PCD Diamond Tooling is engineered for fast and efficient coating removal on concrete surfaces. Equipped with premium Polycrystalline Diamond (PCD) segments, these PCD Diamond Tools quickly remove epoxy, paint, adhesives, mastic, and waterproofing membranes while minimizing clogging.

These tools are ideal for surface preparation before concrete grinding and polishing. ACE Diamond Tooling offers various PCD Diamond Tooling configurations to fit leading floor grinders. Each tool delivers high productivity and consistent performance.

Optimizing the Trapezoid 1/4PCD with Bar

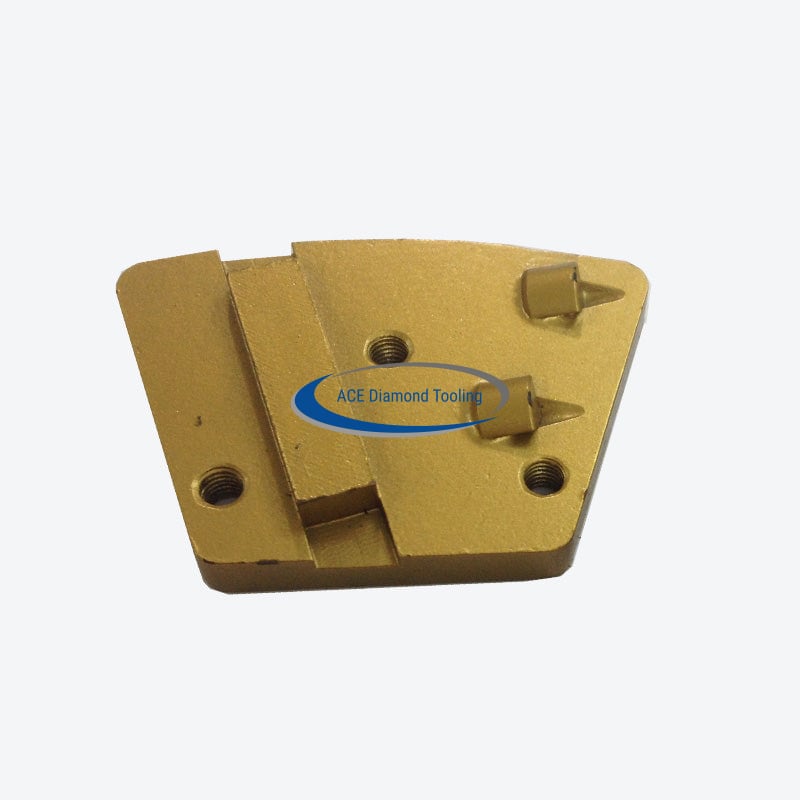

The trapezoid 1/4 pcd with a sacrificial bar or metal bond button is designed to remove coatings without damaging the concrete. The bar acts as a stabilizer and depth guide.

This design reduces floor gouging caused by aggressive segments. They are suitable for removal of medium to thin mastics or glues and epoxy coatings of 30 mils or less.

1/4PCD Without Sacrificial Bar or Metal Bond Button is suitable for removal of:

Thick mastics and glues, and thick elastomeric membranes;

1/4” Thick Parking Deck Membranes;

30 mils and up epoxy coatings, and any coating with silica sand broadcast mixed in.

Using the right pcd coating removal tooling ensures a smooth finish. This Trapezoid 1/4PCD with Bar configuration provides a controlled grind for delicate surface prep projects.

Important Reminder: PCD tools are direction-specific (clockwise or counterclockwise). Always confirm your machine's grinding head rotation before purchasing or installing to avoid performance issues.

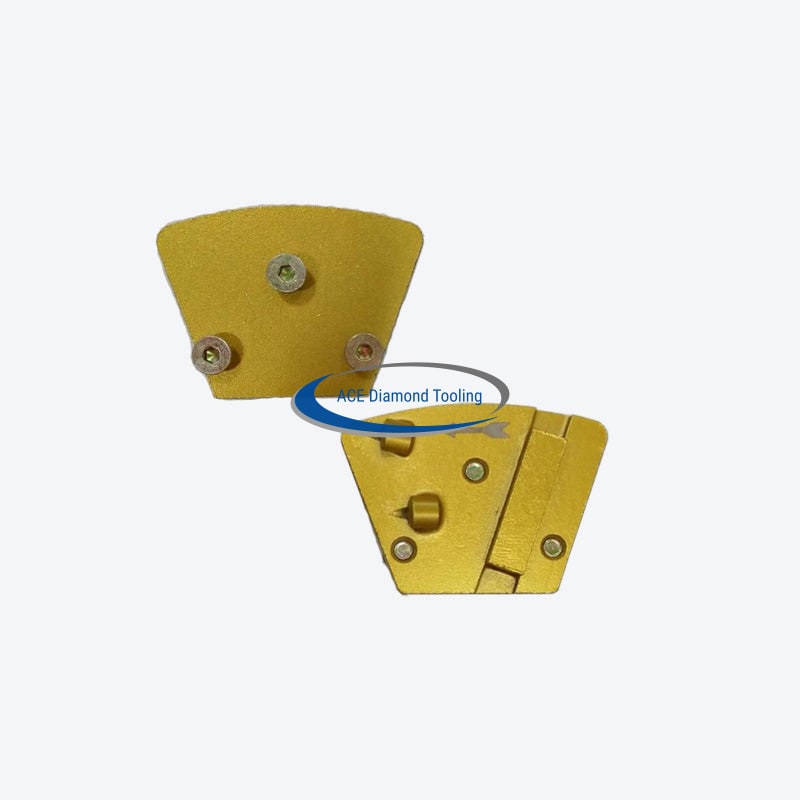

Mounting Holes:

Wolfpack/Iron Horse/ASL: three non-threaded holes diameter 9mm.

SASE: three M6 threaded holes.

Packaging

All tooling comes in reliable packaging to ensure safety. Each set contains 9 pieces in a sturdy brown box. The box features a clear specification label with product details.

Field-Tested and Approved Quality

Each set undergoes daily testing by our sister company, Custom Concrete Prep & Polish. They ensure every Trapezoid 1/4PCD with Bar meets industry standards.

Explore More

Explore the full Trapezoid tooling collection for complementary products. Learn more about us on our about page.

Please feel free to call or email us if you have any questions. Our team is happy to assist you with your order.

Shipping

Orders are typically delivered within 10–15 days because all products are shipped directly from our factory. This includes approximately one week for custom tool production and one week for express shipping, ensuring high product quality while keeping prices competitive.

We generally ship via FedEx, UPS, or DHL. If you prefer a specific shipping carrier, please leave a note at checkout or email us at info@acediamondtooling.com.

Once your order has been shipped, we will notify you by email and provide the tracking number as soon as it becomes available. You can also check your order status anytime in your account on our website. We will monitor the shipment and ensure your package is delivered safely.

Return & Refund

Our tools are tested daily to ensure stable quality and high performance. In the rare event of a quality issue, we guarantee a 100% return, replacement, or refund for the affected items.

If you need to report a quality concern, you may contact us via:

We are committed to resolving any issues promptly and ensuring your satisfaction.

FAQs

  1. Do you have expedited shipping?
    We are already using the fastest shipping solution available. Our company and customer service team are based in the United States, but to ensure high quality, competitive pricing, and a wide range of options for customers, our products are made-to-order and shipped directly from the factory.
  2. Do I need to pay import duties?
    For customers in the United States (except for U.S. island territories), the current price already includes all applicable taxes. For customers in other countries, import duties may apply. If duties are required, the courier company will contact you directly and assist with the payment and processing.
  3. How to measure concrete floor hardness?
    Rebound test for PSI hardnessA rebound test (Schmidt Hammer test) is a quick, non-destructive method to estimate the compressive strength (PSI) and surface hardness of a concrete floor.
    Scratch test for Mohs scaleThe Mohs hardness test measures how resistant concrete is to scratching by using tools with known hardness levels. A test pick is dragged across the concrete surface, and the scratch is inspected. The highest-numbered pick that can scratch the surface represents the concrete’s surface hardness. Mohs scale ranges from 1 (soft) to 10 (hard).
